CM-B – Basic Topping Machine

This is a simple and lightweight machine, perfect for flat terrain. It’s equipped with a vertical cutting bar featuring 4 boron steel knives and 2 horizontal knives on the topping unit, ensuring excellent cutting precision.
It features an anti-shock safety system with a gas spring, two hydraulic movements, and two manual movements. Also available in a double version, it comes with a storage trolley, electric control, and safety blade guards.

Ask for information

Download catalog

Name(Required)

Surname(Required)

Email(Required)

Mobile Phone(Required)

Business Name

Consent

I accept the Privacy Policy

Message

Name(Required)

Surname(Required)

Business Name

Mobile Phone(Required)

Email(Required)

Consent

I accept the Privacy Policy

CAPTCHA

FRAMES

CM-B 4

Cutting bar meas.: 143 cm

Movements: 2 hydraulic movements + 2 manual movements

Cutting program: 2000/2500 rotations

Speedworking: 10/12 km/h

Weight: 127 Kg

Oil capacity: 35 lt/min

Working pressure: 124 bar

CM-B 4+1

Cutting bar meas.: 143 cm + 75 cm

Movements: 2 hydraulic movements + 2 manual movements

Cutting program: 2000/2500 rotations

Speedworking: 10/12 km/h

Weight: 166 Kg

Oil capacity: 35 lt/min

Working pressure: 124 bar

CM-B 4+4

Cutting bar meas.: 143 cm right-left

Movements: 2 hydraulic movements + 2 manual movements

Cutting program: 2000/2500 rotations

Speedworking: 10/12 km/h

Weight: 320 Kg

Oil capacity: 35 lt/min

Working pressure: 124 bar

CM-B DOUBLE 4+2

Cutting bar meas.: 143 cm + 75 cm right-left

Movements: 2 hydraulic movements + 2 manual movements

Cutting program: 2000/2500 rotations

Speedworking: 10/12 km/h

Weight: 340 Kg

Oil capacity: 35 lt/min

Working pressure: 124 bar

EQUIPMENT

ACCESSORIES

Canopy Management Accessories

C-301 Front Ballast Weight Hitch

C-302 Rear/Front 3-Point Hitch

C-303 Vertical Cutting Bar Retractability

C-304 Electro-hydraulic Distributor with Joystick Control

C-304BIS Electro-hydraulic Distributor with Dual-Axis Joystick Control

C-305 Independent Hydraulic Power Unit

C-306 Vertical Cutting Bar (190 cm)

C-307 Horizontal Cutting Bar (90 cm)

C-308 Addition of Movements

C-311 Heat Exchanger

C-313 Addition of +1 Boron Blade to Vertical Bar (+40cm)

C-314 Vine Gatherer

C-315 Lower Tilting Blade on Vertical Cutting Bar

C-316PLUS Custom Configuration Cutting Bar Length (+3 cm per Knife from Standard Height)

Accordion

Related Prodotti

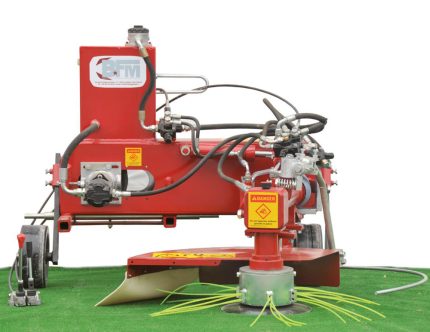

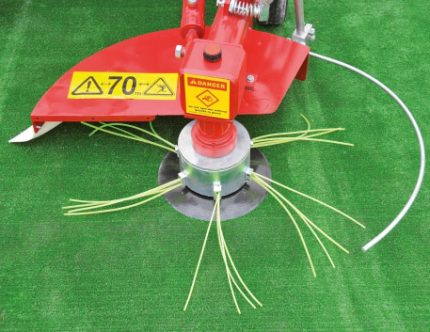

DB12 Automatic Inter-row Mower
