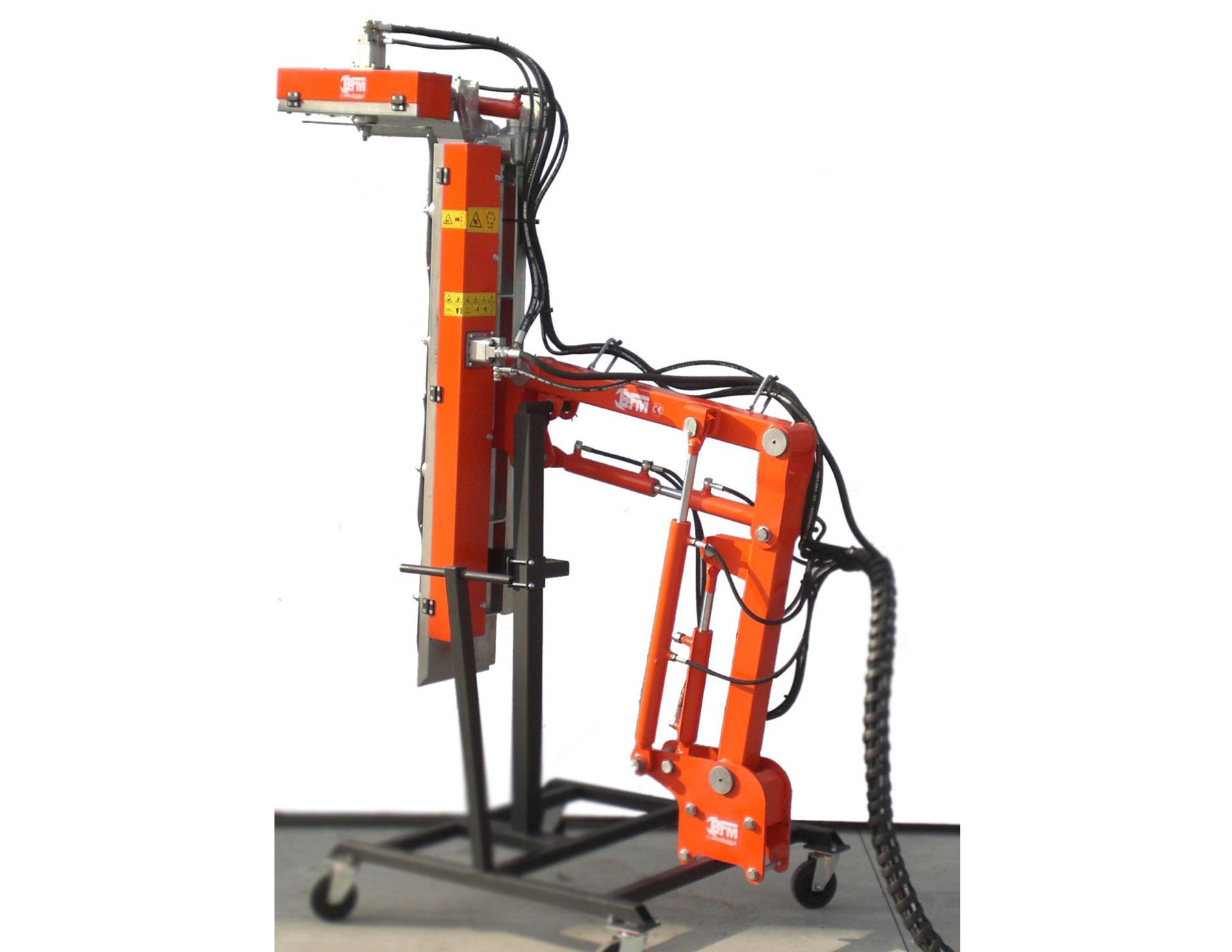

CM-S Synchronized Topping Machine
The CM-S Synchronized Pruning Machine is designed to meet every need for green pruning in row plantations. Its 4-movement synchronized pantograph system allows for use in both narrow spaces (minimum 550mm at the machine’s center) and very wide areas (up to 1550mm), while maintaining a minimal footprint when fully closed. It features a distribution system with independent levers that also allow for adjusting the knife speed.
FRAMES
CM-S 400
CM-S 410
CM-S 420
EQUIPMENT
ACCESSORIES
Canopy Management Accessories
Accordion
Related Prodotti
AB9 Automatic Inter-row Weeding Blade
SKU:
AB9
Designed for spring and summer work, the AB9 is a fast machine, ideal for moving and turning the soil without deep cultivation. With its compact size, it can operate in very tight spaces, down to 40cm between plants.
The adjustable automatic sensor allows the machine to adapt automatically when encountering plants or obstacles. It's equipped with manual lever controls located on the tractor, assisting the operator in cultivation and machine adjustment.
CM-SD – Synchronized Double Topping Machine
SKU:
CM-SD
This pruning machine is designed for green pruning in wide-row plantations (up to 322cm wide), while maintaining a minimal footprint when closed. It uses the same cutting bars as the CM-SN version, featuring boron steel blades, and offers a 50cm height adjustment for the telescopic arms.
The compensating system ensures the cutting bars always remain vertical and parallel to the tractor's axis, while the cutting unit can tilt by +/- 20° to adapt to various slopes. It's equipped with electro-hydraulic distribution and a control panel with 4-axis joysticks.
The vertical cutting bar is manually adjustable in height with a 30cm range, allowing for optimal adaptation to different work needs. The maximum cutting height is 266cm with the topping closed. Oil flow required: 35 liters/min.
CM-SF – Synchronized Bar Mower Topper
SKU:
CM-SF
This pruning machine is designed to meet all pruning needs, both green and dry, for branches with a maximum diameter of 1-2 cm. Thanks to its innovative synchronized pantograph system with 4 movements, it can be used in confined spaces (min. 55 cm at the center) and wider areas (up to 155 cm), while maintaining a minimal footprint when closed.
It's easily adjustable due to its distribution system with independent levers. The vertical cutting bar is manually adjustable in height with a 50 cm range, reaching a maximum cutting height of 320 cm with the topping closed, ensuring excellent results in every situation.
It's available in 4 versions: two with a sickle bar and two combined with knives. You can also equip it with cutting bars of different lengths to suit your specific needs.
DB12 Double Inter-row Mower
Designed for efficient and precise cutting, it uses soft polyurethane wires with a rigid core, ensuring a clean cut without damaging the trunk. The leveling support disc sweeps the ground, making it ideal for cleaning and cutting grass in vineyards and orchards. The head reclines up to +/- 30°, allowing it to work on raised beds and hilly terrains, offering maximum versatility. With its dual functionality, the DB12 Double works simultaneously on both sides of the row, optimizing time and improving productivity.
