CM-SNU – Over-the-Row Topping Machine

This is a simple and lightweight machine, perfect for flat terrain. It’s equipped with a vertical cutting bar featuring 4 boron steel knives and 2 horizontal knives on the topping unit, ensuring excellent cutting precision.
It features an anti-shock safety system with a gas spring, two hydraulic movements, and two manual movements. Also available in a double version, it comes with a storage trolley, electric control, and safety blade guards.
Operating speed: 10-12 km/h.

Ask for information

Download catalog

Name(Required)

Surname(Required)

Email(Required)

Mobile Phone(Required)

Business Name

Consent

I accept the Privacy Policy

Message

Name(Required)

Surname(Required)

Business Name

Mobile Phone(Required)

Email(Required)

Consent

I accept the Privacy Policy

CAPTCHA

FRAMES

CM-SNU535

Cutting bar meas.: 5+2+5 150/62/150

Movements: 4 hydraulic movements

Cutting program: 2000/2500 rotations

Speedworking: 10/12 km/h

Weight: 320 Kg

Oil capacity: 35 lt/min

Working pressure: 120/140 bar

CM-SNU525

Cutting bar meas.: 5+3+5 150/90/150

Movements: 4 hydraulic movements

Cutting program: 2000/2500 rotations

Speedworking: 10/12 km/h

Weight: 320 Kg

Oil capacity: 35 lt/min

Working pressure: 120/140 bar

EQUIPMENT

ACCESSORIES

Canopy Management Accessories

C-301 Front Ballast Weight Hitch

C-302 Rear/Front 3-Point Hitch

C-303 Vertical Cutting Bar Retractability

C-304 Electro-hydraulic Distributor with Joystick Control

C-304BIS Electro-hydraulic Distributor with Dual-Axis Joystick Control

C-304TRIS Electro-hydraulic Distributor with Armrest and EEC

C-305 Independent Hydraulic Power Unit

C-306 Vertical Cutting Bar (190 cm)

C-307 Horizontal Cutting Bar (90 cm)

C-314 Vine Gatherer

C-315 Lower Tilting Blade on Vertical Cutting Bar

C-316PLUS Custom Configuration Cutting Bar Length (+3 cm per Knife from Standard Height)

C-317 Pistone Retraibilità Barra Di Taglio A L Rovesciata

Accordion

Related Prodotti

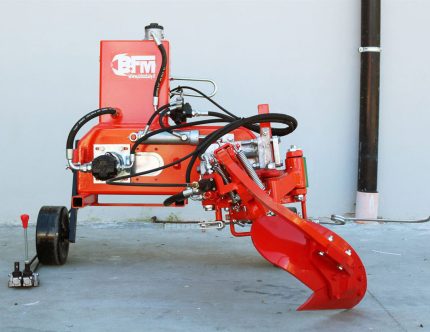

AB6 Automatic Inter-row Under-Vine Plow
