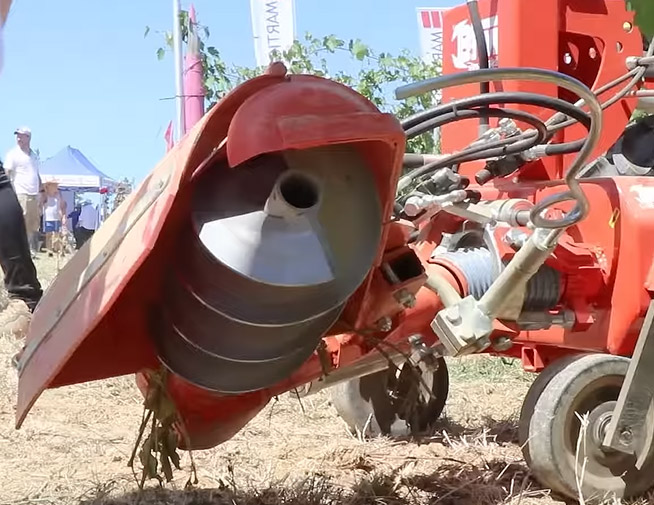

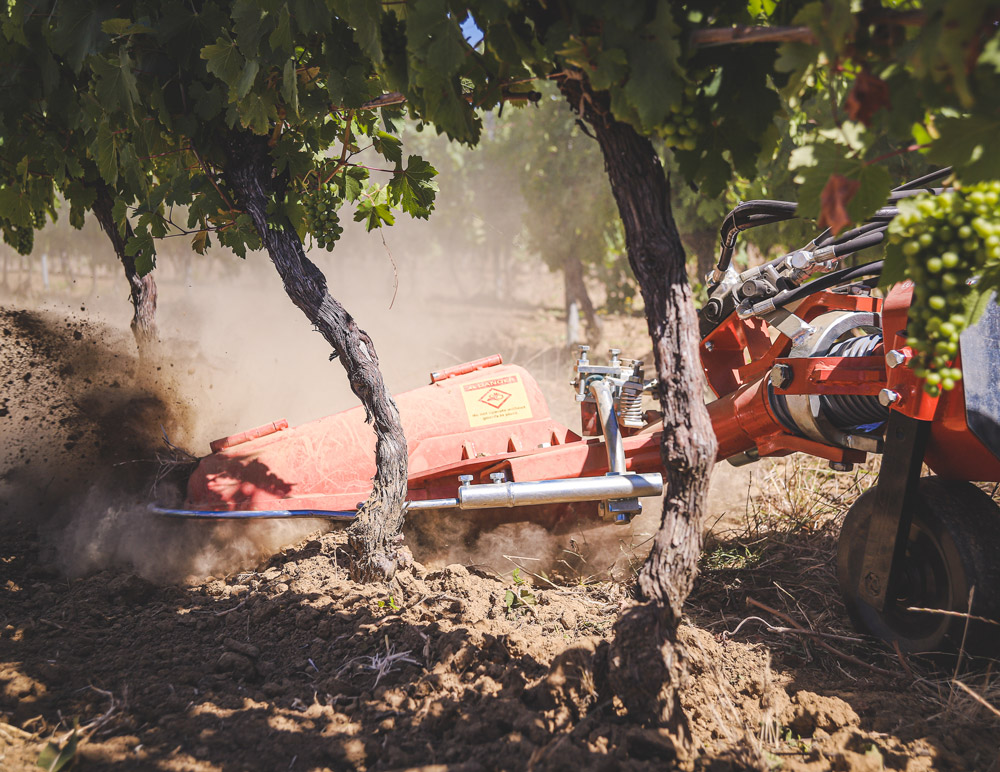

DB11 Automatic Inter-row Disc
Ideal for stony ground, the DB11 uses discs to move the soil and form small clods, allowing the stump to breathe. The head, adjustable up to +/- 30°, easily adapts to inclines, ensuring uniform cultivation.
×
×
FRAMES
Small
Weight: 162 Kg
Row width: 120 cm/180 cm
Working width: 45/60/75 cm
Tilt: 30°
Power: 20 hp
Tractor center opening: 95 cm
Medium
Weight: 192 Kg
Row width: 180 cm/260 cm
Working width: 45/60/75 cm
Tilt: 30°
Power: 25 hp
Tractor center opening: 110/145 cm
Large
Weight: 212 Kg
Row width: 240 cm/350 cm
Working width: 45/60/75 cm
Tilt: 30°
Power: 25 hp
Tractor center opening: 150/175 cm
Extra Large
Weight: 242 Kg
Row width: 350 cm/500 cm/600 cm
Working width: 45/60/75 cm
Tilt: 30°
Power: 25 hp
Tractor center opening: 200/255 cm
EQUIPMENT
ACCESSORIES
Arm Units
A-111 Plow Side Body
A-118 Side Body Mower Disc
A-118 Side Body Mower Disc
Spindles
A-121 Shaft with Flat Discs
A-121BIS Bare Shaft and Soil Hilling Kit
A-122 Narrow Milling Head
A-128 90cm Working Width Milling Head
A-130 Egg-Shaped Shaft
A-131 Spiral Shaft
Accessories To Be Implemented
A-124 Independent Hydraulic Unit + Electric Controls
SPOST Supplementary Hydraulic Shift
Accordion
